From $599.00$1,387.00
Legacy Product

AODE/4R70W/4R75W

This product is not currently available

12″ applications rated up to 400 horsepower
9.5″ & 11″ applications rated up to 650 horsepower
10.5″ applications rated up to 850 horsepower
Custom stall speed available

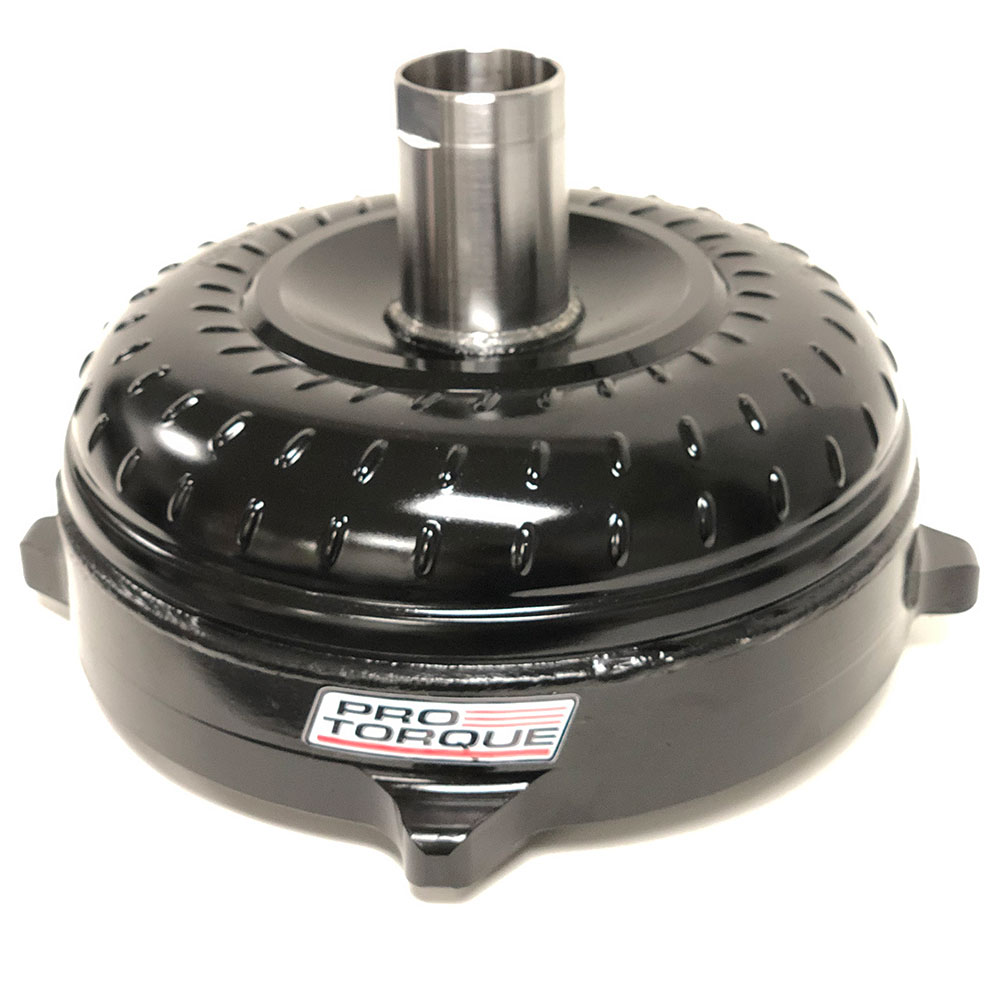

Actual converter may vary, image for illustration purposes only.

Choose Application
Clear   Clear All
12" AODE High Perf. 11 3/8" (1800-2100)
11" AODE Mustang ('99+) 10 5/8" (2000-2500)
9.5" AODE/4R70W 10 5/8" (2800-3200)
9.5" AODE/4R70W 10 5/8" (3200-3500)
9.5" AODE/4R70W 11 3/8" (2800-3200)
9.5" AODE/4R70W 11 3/8" (3200-3500)
9.5" AODE/4R70W 10 5/8" (CUSTOM)
9.5" AODE/4R70W 11 3/8" (CUSTOM)
10.5" AODE/4R70W 10 5/8" (2400-2600)
10.5" AODE/4R70W 10 5/8" (2600-2800)
10.5" AODE/4R70W 11 3/8" (2400-2600)
10.5" AODE/4R70W 11 3/8" (2600-2800)
10.5" AODE/4R70W 10 5/8" (CUSTOM)
10.5" AODE/4R70W 11 3/8" (CUSTOM)
Select Add-ons:

SKU: Select all Options Above
Options: Select all Options Above
A newer version of this product is available:
For details, example: Get free delivery, or pick up available items from a Protorque Authorized Distributor
SKU: N/A Category:

Description

APPLICATION APPROX. STALL RATED HP
12″ AODE High Performance Billet Cover 11 3/8″ Bolt Pattern 1800-2100 up to 400
11″ AODE Mark VII Mustang (’99+) 10 5/8″ Bolt Circle 2000-2500 up to 650
9.5″ AODE/4R70W 10 5/8″ Bolt Pattern 2800-3200 up to 650
9.5″ AODE/4R70W 10 5/8″ Bolt Pattern 3200-3500 up to 650
9.5″ AODE/4R70W 11 3/8″ Bolt Pattern 2800-3200 up to 650
9.5″ AODE/4R70W 11 3/8″ Bolt Pattern 3200-3500 up to 650
9.5″ AODE/4R70W 10 5/8″ Bolt Pattern Multi Clutch CUSTOM up to 650
9.5″ AODE/4R70W 11 3/8″ Bolt Pattern Multi Clutch CUSTOM up to 650
10.5″ AODE/4R70W 10 5/8″ Bolt Pattern 2400-2600 up to 850
10.5″ AODE/4R70W 10 5/8″ Bolt Pattern 2600-2800 up to 850
10.5″ AODE/4R70W 11 3/8″ Bolt Pattern 2400-2600 up to 850
10.5″ AODE/4R70W 11 3/8″ Bolt Pattern 2600-2800 up to 850
10.5″ AODE/4R70W 10 5/8″ Bolt Pattern Multi Clutch CUSTOM up to 850
10.5″ AODE/4R70W 11 3/8″ Bolt Pattern Multi Clutch CUSTOM up to 850



Actual converter may vary, image for illustration purposes only.

IMPORTANT INFORMATION:
Repairs and freshen up prices depend on condition of core.
Standard freshen up consist of replace bearings, bushings and drive hubs and will vary in price from $197- $397.
Stall adjustment will depend on parts needed and/or time needed to modify.
Please add NP for all non-lock up.
All stall speeds are approximate, please call for more info.
We are a full custom shop we will work on everything and anything please call for custom work not yet listed!

Additional information

Weight N/A
Dimensions 14 × 14 × 10 in
Transmission

Ford 4R70W/E, Ford 4R75W/E, Ford AODE

Fuel Type

Gas

Horsepower

400, 650, 850

Power Adder

no, yes

Transbrake

no, yes
